- fluorescent tube not included
- 30-40% lower energy consumption
- 10% more light output and better light than the traditional T8 36W fluorescent lamp
- Designed to be used with conventional iron core T8 ballast. Don’t use with electronic ballasts.

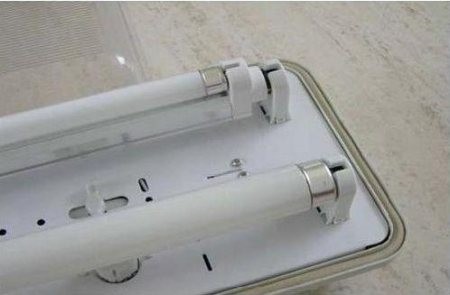

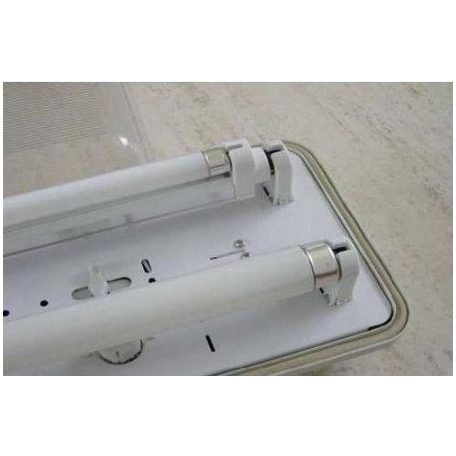

- (A) In some of the luminaires, one conventional ballast works with one T8 tube. (B) In some of the luminaires, one conventional ballast works with more than one T8 tube.
This converter works only with luminaire described under (A).
Installation
1. turn off power supply
2. remove the T8 tube
3. remove the starter.
4. If the luminaire has power factor correcting capacitor, remove the capacitor, otherwise the power factor will be reduced to 0.5.
5. install the T5 tube in the same as T8 tube.
6 turn on the power to have a test, then finish the installation.
