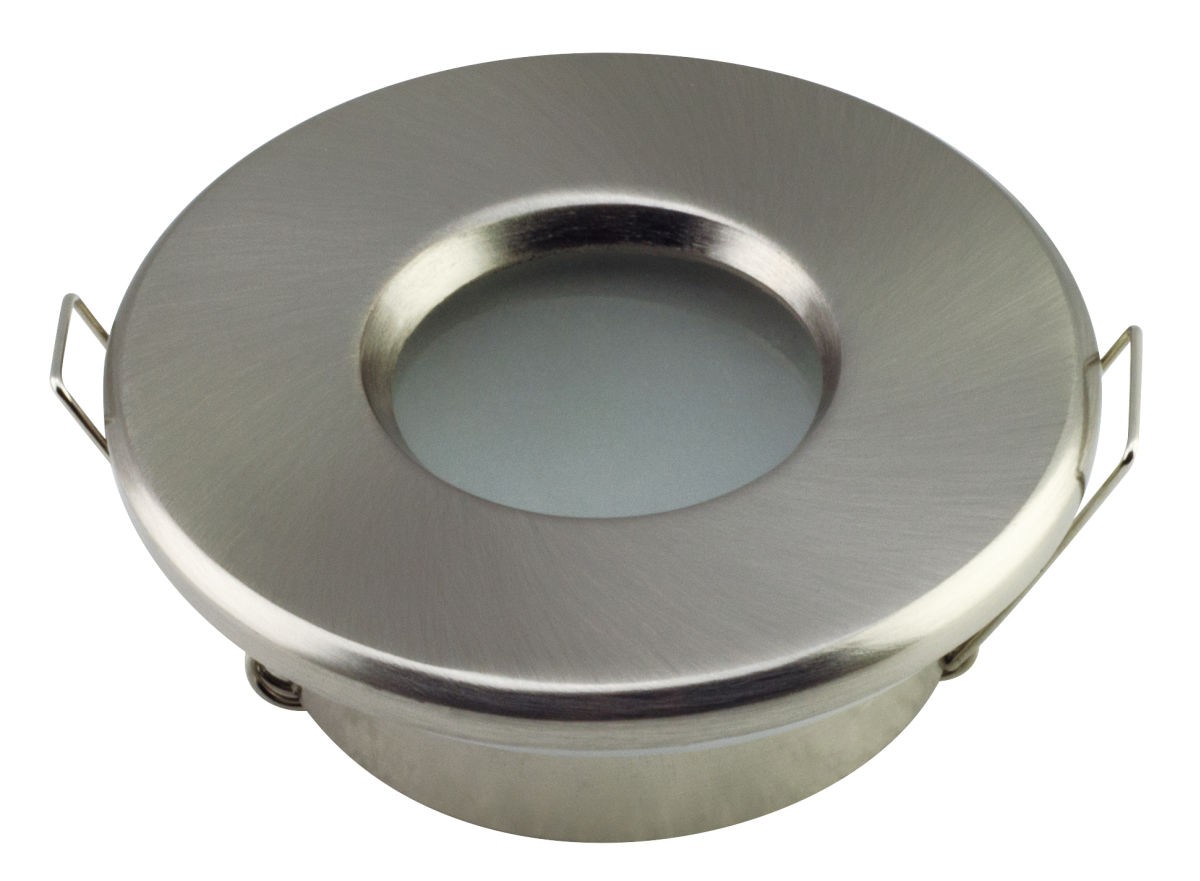

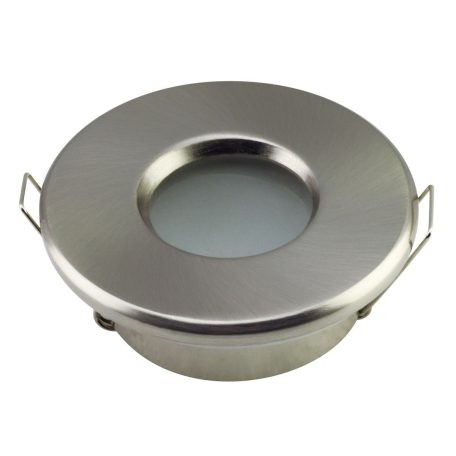

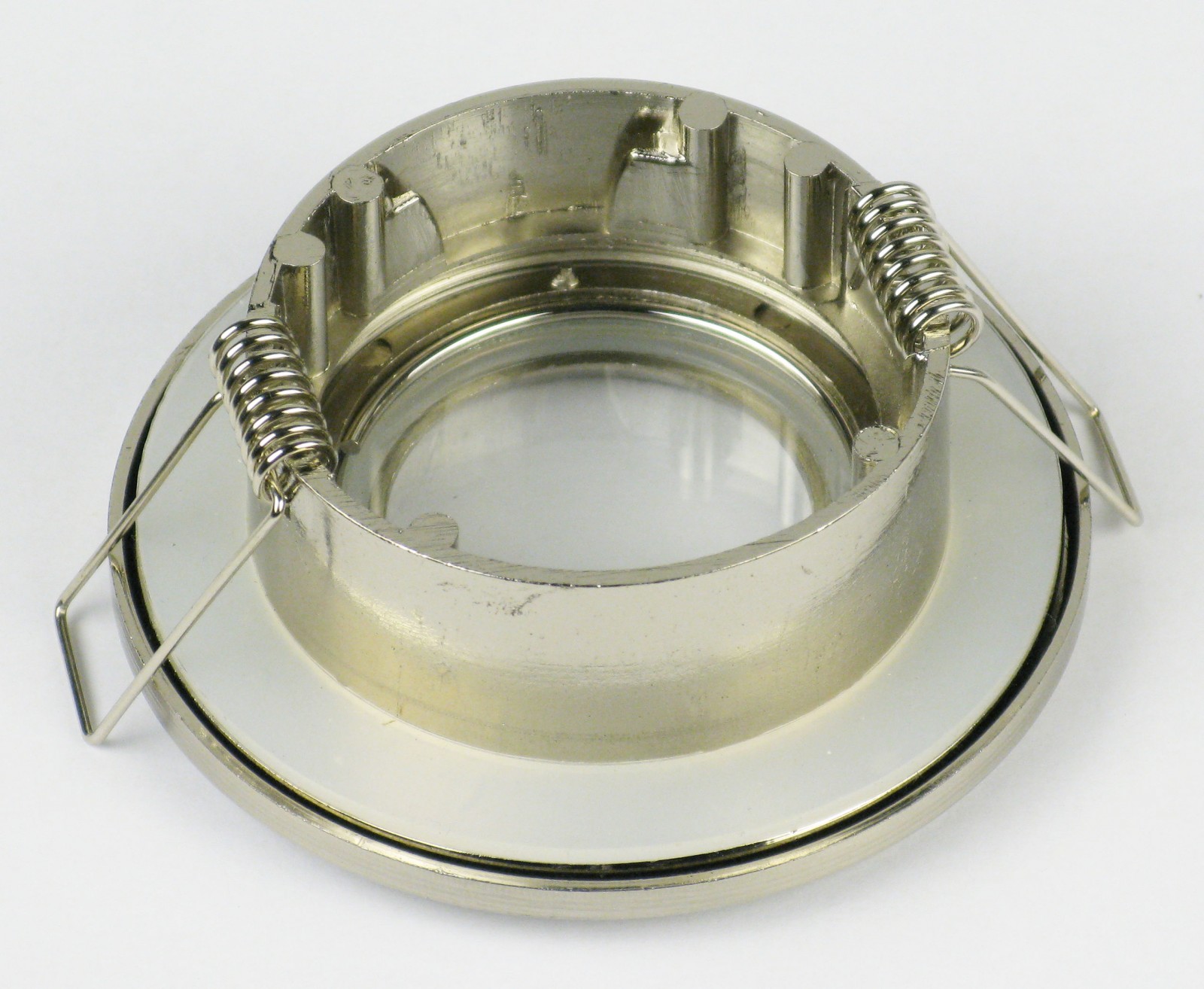

- luminaire diameter 83mm, cut-out diameter 68mm.
- suspended ceiling minimum height 205mm = whole luminaire (including LED lamp and socket) height 130mm + ventilation distance 75mm.

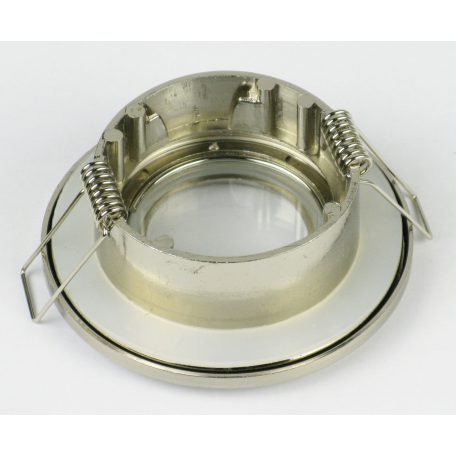

- with protective glass.
- Protection: IP20 above suspended ceiling.
IP43 below suspended ceiling (protected against spraying water max 60° from the vertical).

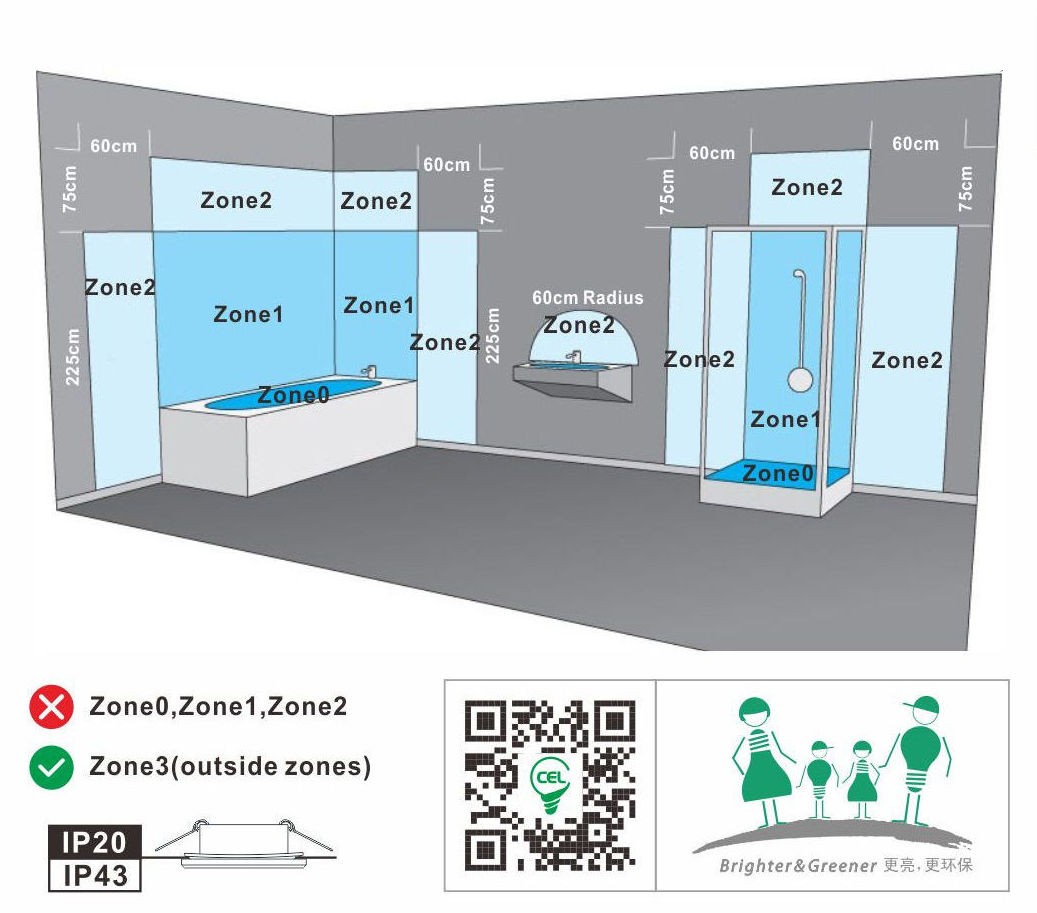

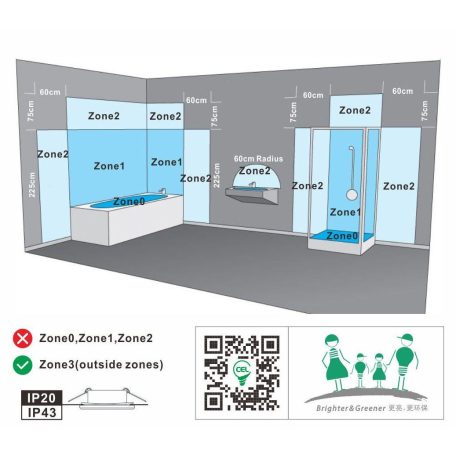

- It cannot be used in bathroom Zone 0, 1, 2 !!!!!!!! It can only be used in Zone 3 (Outside Zones). Zone 3 is anywhere outside Zones 0,1 and 2 and where no water jet is likely to be used for cleaning purpose. No IP rating is required in Zone 3.

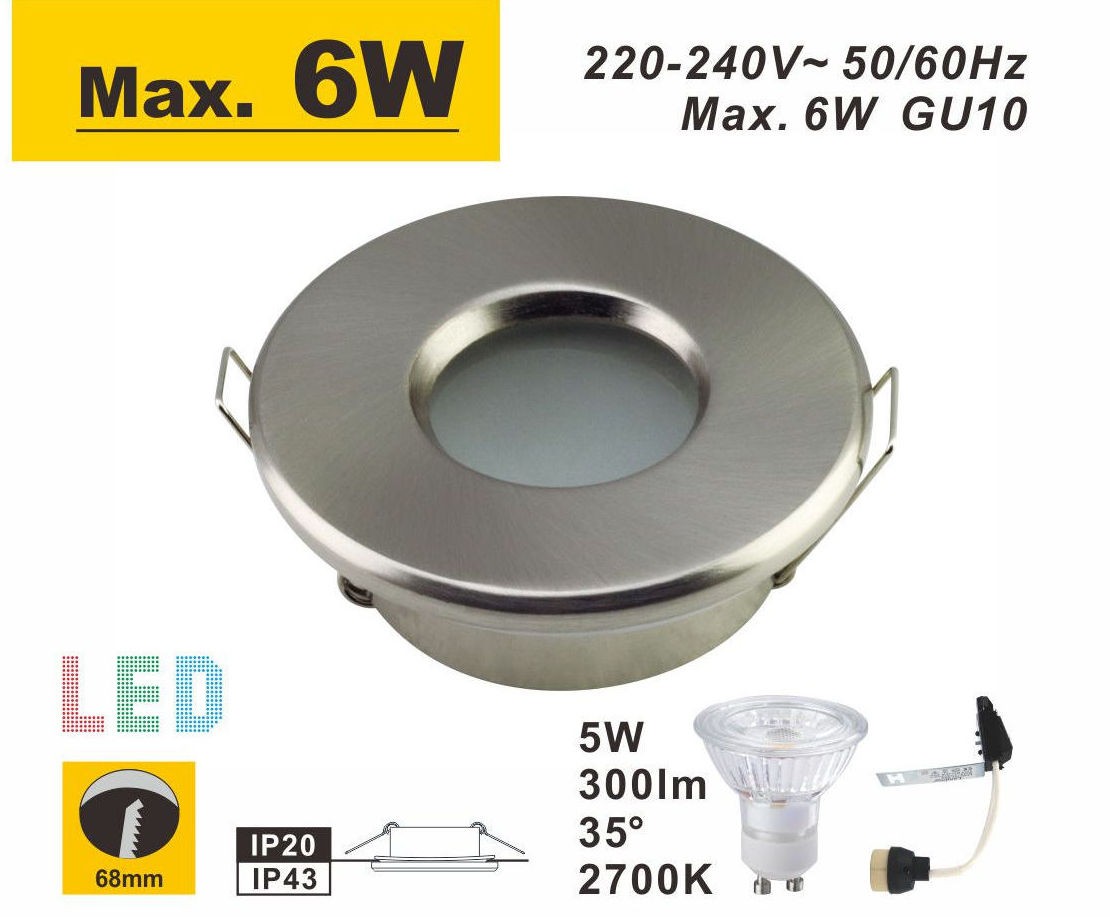

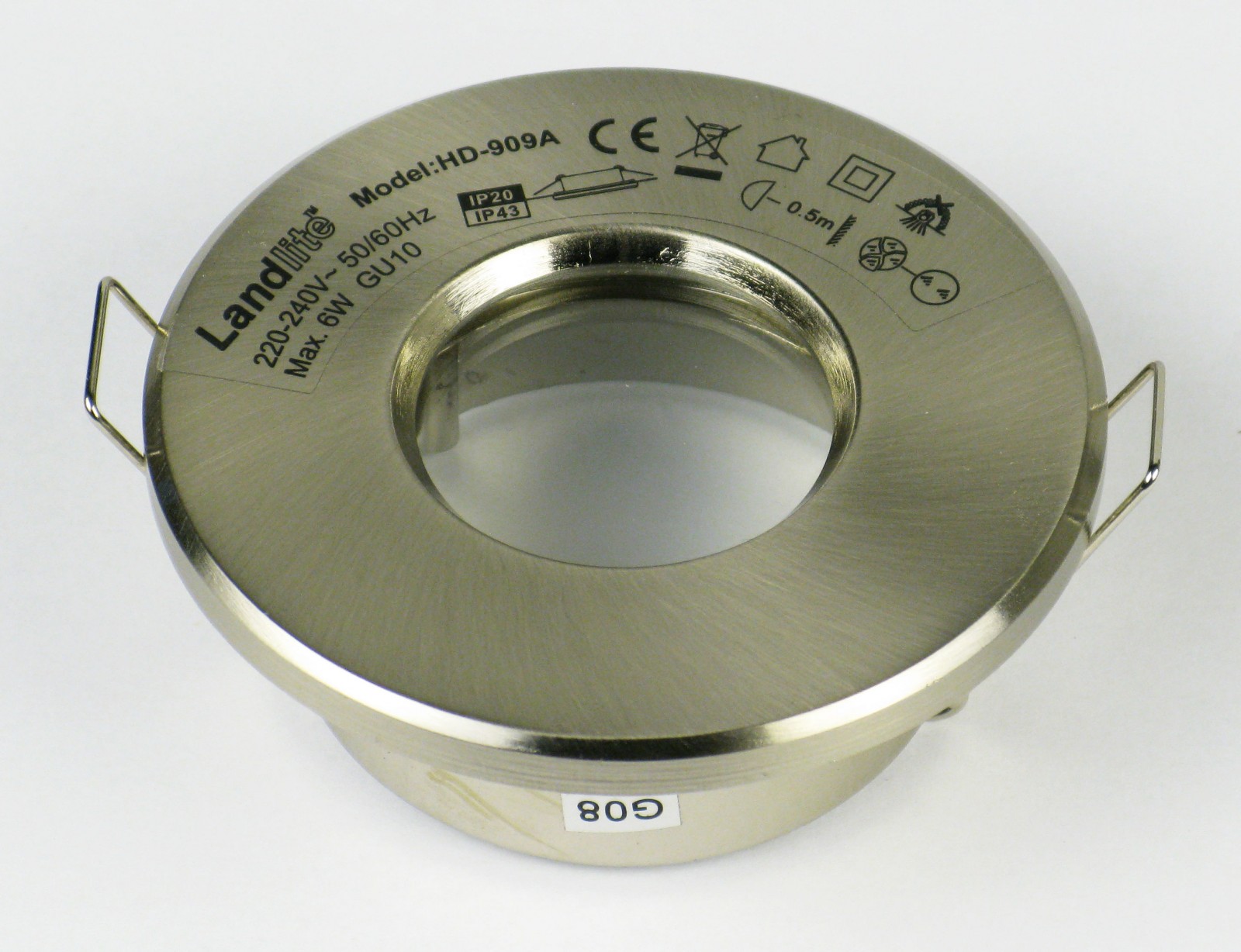

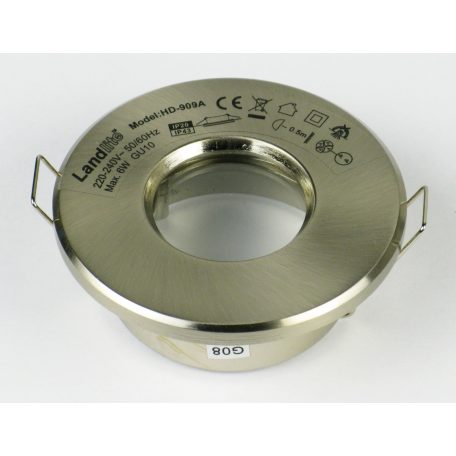

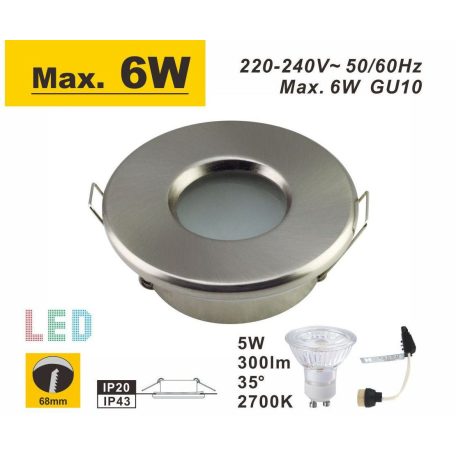

- Technical data: 220-240V~ 50/60Hz Max 6W GU10, which means max 6W GU10 LED bulb can be used in case of lamp change later.

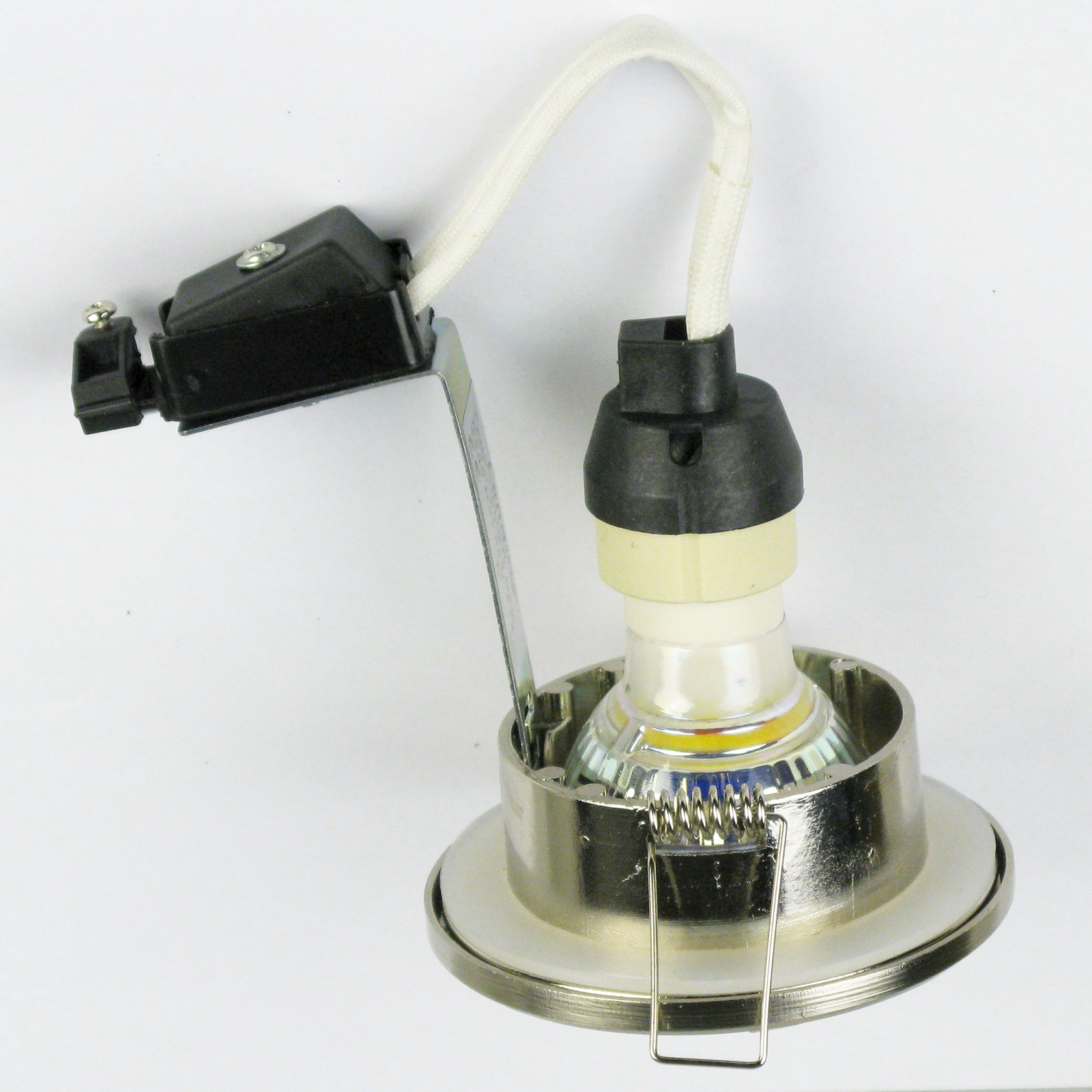

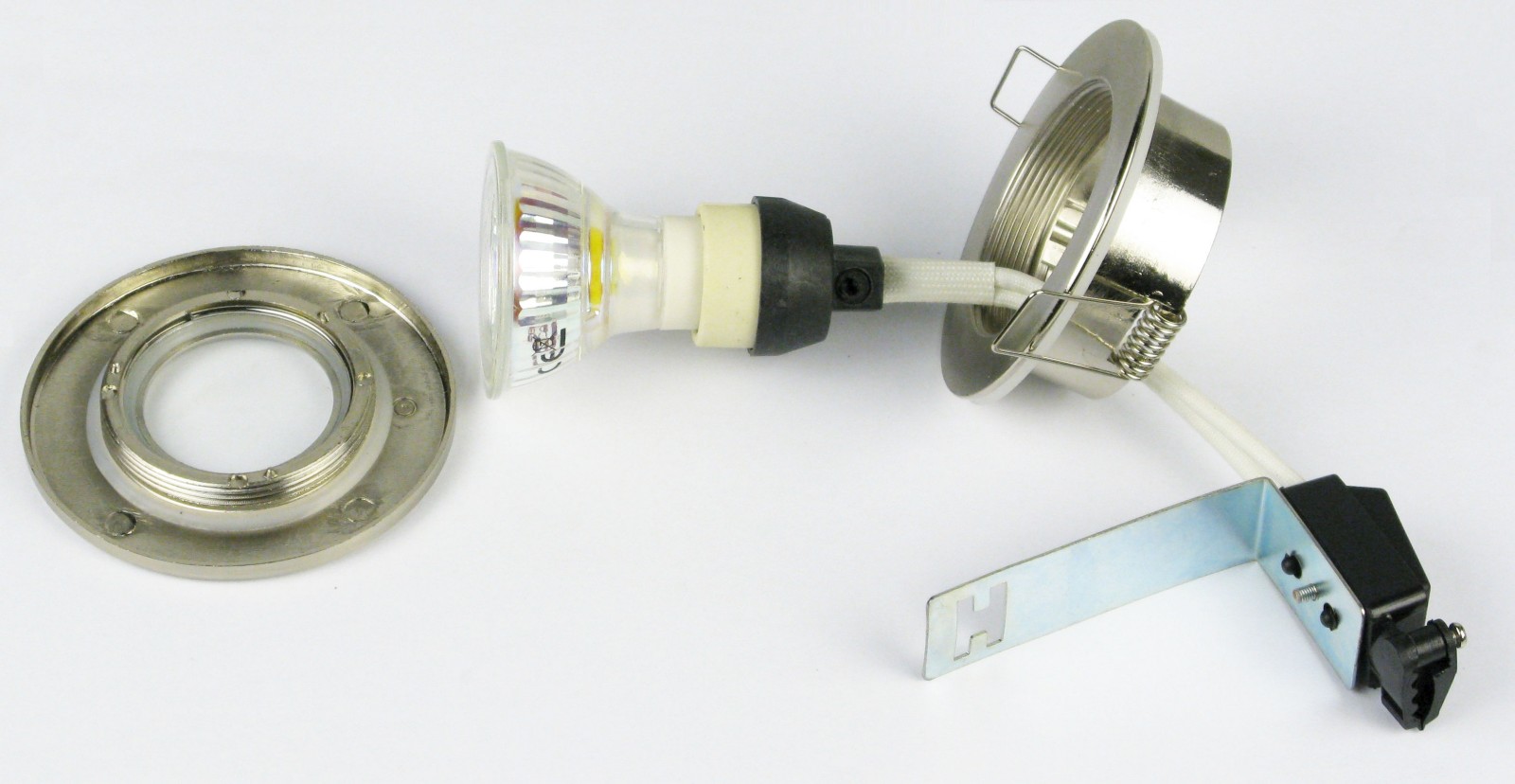

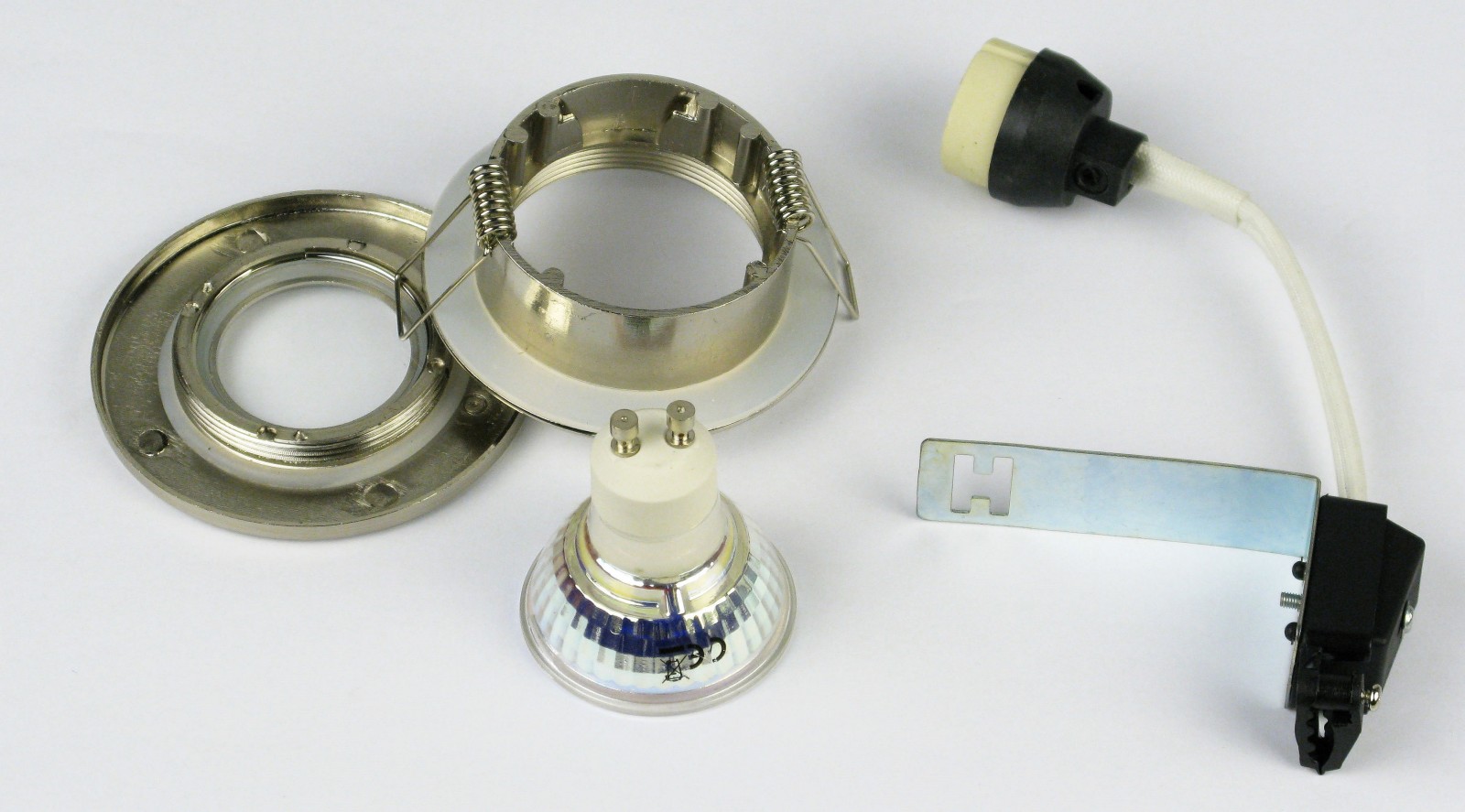

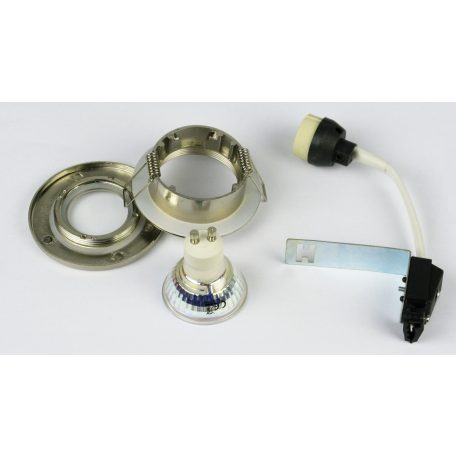

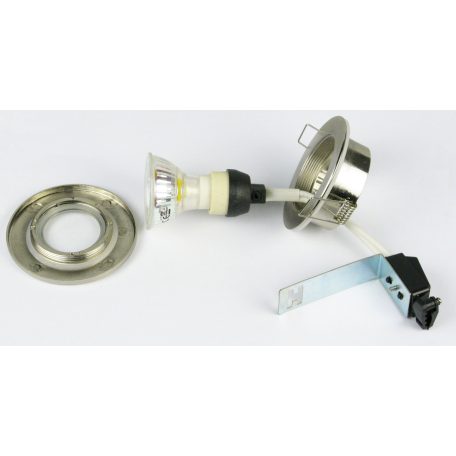

-Contents in the package: 1pc LED recessed downlight, 1pc Landlite LED bulb 5W 300lm (=44W traditional) GU10 35° 2700K warmwhite, 1pc lamp holder, 1pc user’s instruction.
- Click on the link below to view other documents / images,
color box
User's instruction
